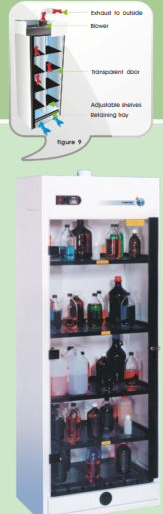

The captair® store AVP can also be offered as a unit to be ducted (figure 9). Those models are equipped with a 330 m^3/h blower incorporated in the top-housing, 3,3 meter / 10″ of flexible duct with a 100 mm / 4″ diameter collar.
| Specifications | |
|---|---|
| Noise level | 62 dbA |
| Volume of air treated | 300 m^3/h |
| Air exchange | 550 times/min |
| Voltage/frequency | According to the country of delivery |
| Power consumption | 85 Watt |
| Amperage | 0,38 A |
Range of ductless storage cabinets AVP - R
AVP – R
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 700 | x | 425 | x | 1730 |
| Ext | 800 | x | 505 | x | 2150 |
AVPS – R
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 700 | x | 425 | x | 1730 |
| Ext | 800 | x | 505 | x | 2150 |
AVPD – R
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 2x 700 | x | 425 | x | 1730 |
| Ext | 1600 | x | 505 | x | 2150 |
AVPSD – R
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 2x 700 | x | 425 | x | 1730 |
| Ext | 1600 | x | 505 | x | 2150 |
