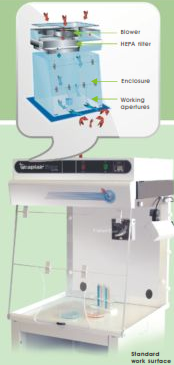

The flowcapTM 700 cabinet is equipped with a blower and a H14 HEPA filter. The blower takes the air of the room through the H14 HEPA filter where all possible particles are filtered with an efficiency of 99,995% for particles larger than 0,3 µm. The ultra-clean air entering the enclosure is of Class 100 quality (i.e. less than 100 particles larger than 0,3 µ per cubic foot – EN ISO 14644 Standard). The product handled inside the cabinet is thus protected against any particulate contamination.
Dimensions
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 608 | x | 565 | x | 560 |
| Ext | 645 | x | 600 | x | 803 |
| Specifications | |
|---|---|
| Type of filter | H14 HEPA |
| Volume of air treated | 175 m^3/h |
| Air exchange | 9,6 times per/ minute |
| Voltage/frequency | According to the country of delivery |
| Power consumption | 49 Watt |
| Amperage | 0,31 A |
| Internal volume of the enclosure | 0,305 m^3 |
| Average face velocity | 0,5 m/s |
| Noise level | 55 dbA |
