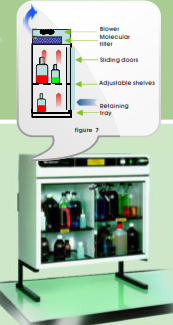

A ministoreTM 822 cabinet is equipped with a blower and a molecular filter (figure 7) designed to retain the vapours escaping from chemical bottles stored inside. It includes 2 acrylic sliding doors, lockable, 2 adjustable shelves and 2 compartments allowing the user to separate non compatible chemicals. The blower (extremely silent, only 45 dBA), takes the air of the room to the storage enclosure. The induced air flow carries along the chemical vapours to the molecular filter where they are safely eliminated (filtration according to Class 2 of the NFX 15-211). After filtration, the pure air returns into the room. A ministoreTM 822 can be installed immediately at any workstation and just needs to be connected to a standard electrical socket to be in service. It can be either installed directly on the bench, on leg supports, fixed to the wall or placed under the benchtop.
Range of models

Placed on the benchtop
Ref.: 822A
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 753 | x | 322 | x | 519 |
| Ext | 819 | x | 354 | x | 725 |

Placed on a base
Ref.: 822B
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 753 | x | 322 | x | 519 |
| Ext | 819 | x | 435 | x | 911 |

Mounted to the wall
Ref.: 822C
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 753 | x | 322 | x | 519 |
| Ext | 819 | x | 372 | x | 705 |

Placed under the benchtop
Ref.: 822D
| (mm) | Length | Depth | Height | ||
|---|---|---|---|---|---|
| Int | 753 | x | 322 | x | 519 |
| Ext | 819 | x | 354 | x | 725 |
| Specifications | |
|---|---|
| Noise level | 45 dbA |
| Volume of air treated | 75 m^3/h |
| Air exchange | 9,9 times/min |
| Voltage/frequency | According to the country of delivery |
| Power consumption | 20 Watt |
| Amperage | 0,17 A |
